The Power Distribution Box lets you switch seamlessly between an onboard battery and an 8-pin LEMO-compatible power input without ever losing power to your camera or accessories. If both power sources are connected at the same time, the DC input is used as the primary source. Once that input drops to 22.8V, the system automatically switches over to the onboard battery.
In terms of inputs, it supports a Gold Mount high-voltage battery plate as well as an 8-pin DC input that operates between 21 and 34 volts.
This unit is also available in V-Mount and B-Mount versions, depending on your setup.

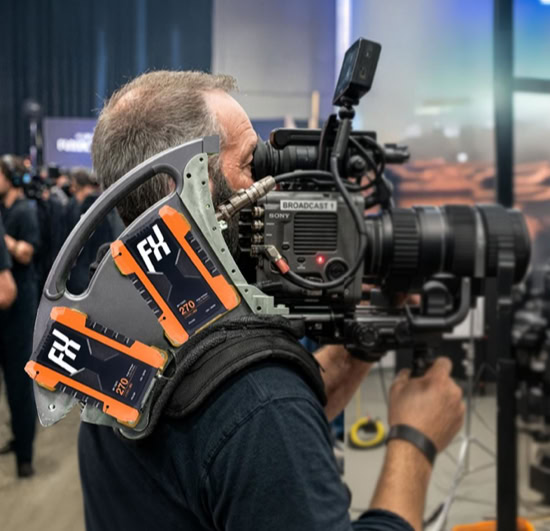

SHARK FINS
For outputs, it gives you a good range of options: two regulated D-Tap outputs at 15 volts, two 3-pin outputs that provide battery voltage with run/stop functionality, and two 2-pin outputs that are also regulated at 15 volts. There’s also a USB-C Power Delivery port offering 5 volts at 3 amps, complete with a thread lock for a secure connection.
RED-Master Mount
BY NOW
EUR 1500.-
Power Distribution Box
Hot-swap between on-board battery and 8pin LEMO compatible connector.
INPUTS
BATT Gold Mount High Voltage Plate
DC IN 8pin (21-34V)
OUTPUTS
2x D-Tap (15V regulated)
2x 3pin (battery voltage with run/stop)
2x 2pin (15V regulated)
1x USB-C PD (5V at 3A with thread lock)
Also available in a V-Mount and B-Mount versions.
Please watch the video below.
BY NOW
EUR 1500.-
